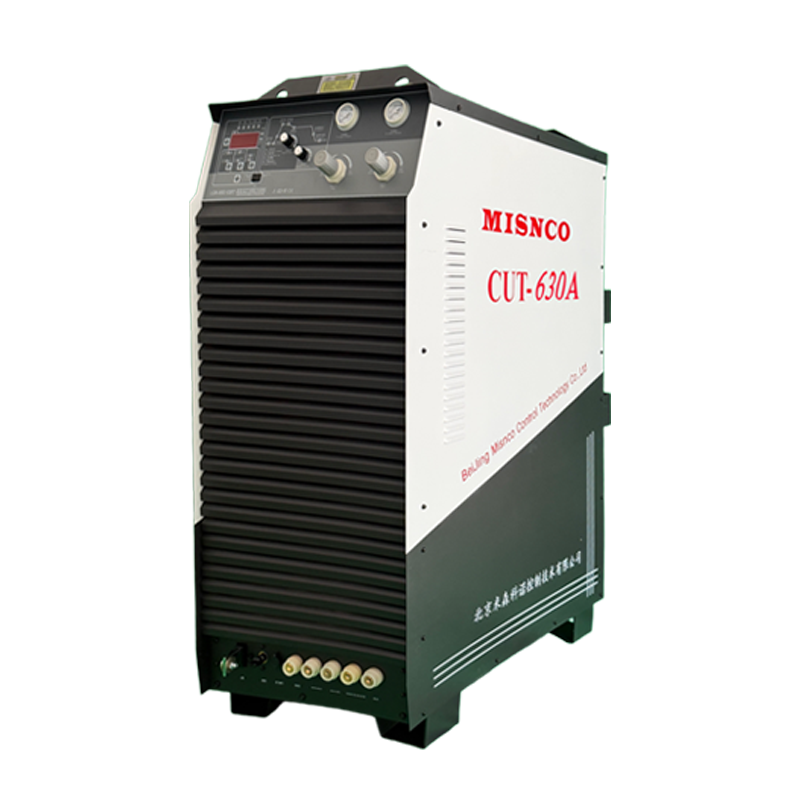

LGK-630IGBT Air Plasma Cutting Machine

Main Features
Rated output current>630A, handheld quality cutting up to 110mm, cutting capacity up to 180mm
Constant temperature control torch temperature – higher service life of accessories
The air – delivery time and delay air – breaking time can be set according to the torch of different length
When selecting the state of gas-cooled torch use, the power supply will automatically limit the maximum output current of no more than 160A, avoiding large current burning of gas-cooled torch
Real-time monitoring of coolant state, when the flow of fluid is insufficient, the power prompt failure code and does not output, timely protection of the cooling system and torch
It has superheating, gas pressure insufficient cooling fluid flow, power supply phase, overpressure and underpressure protection function
Have a secondary menu setup other features to meet more needs
Smart fans work after cutting starts, stop automatic shutdown after cutting, reduce dust accumulation in the machine and improve the life of the fan

Product Application
Applicable to carbon steel, alloy steel and non – ferrous metal materials for handheld/mechanical cutting
Suitable for boiler pressure vessel manufacturing, chemical container manufacturing, industrial power plant installation, metallurgy, casting casting mounting, metal recycling and other metal cutting industries
